Step 13 –Configuring ESXi Server Network Settings
- Log in to ESXi Server DCUI by pressing F2.
- Select “Configure Management Network” Option
- Select IP Configuration Option.

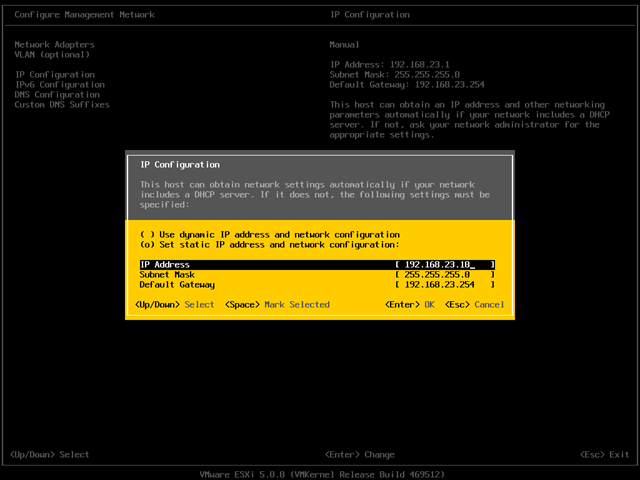

- Enter Static IP Address for this ESXi Server. For example, if this is ESXi-01, then enter 192.168.xxx.10 and Subnet Mask of 255.255.255.0 then press Enter.

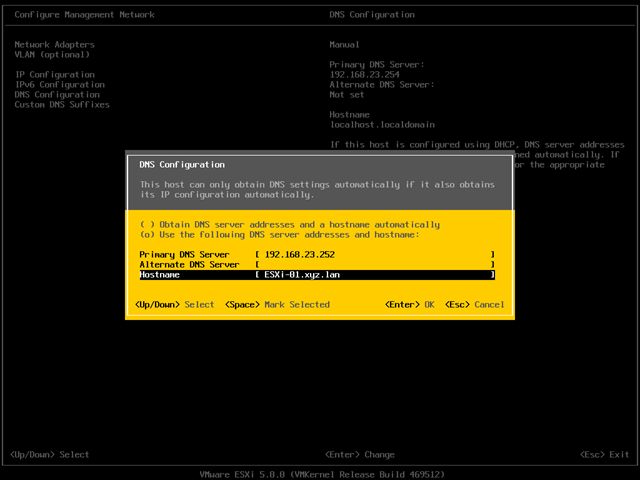

- Change DNS Configuration to point to your DC IP Address. For example, 192.168.xxx.252, then press Enter.

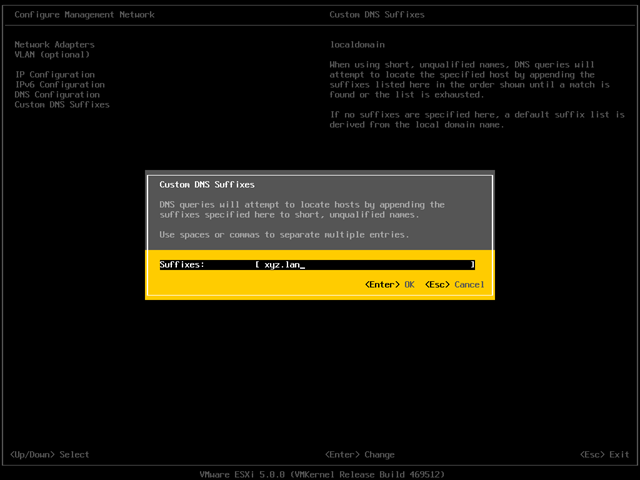

- Change Custom DNS Suffixes to your domain name such as xyz.lan then press Enter.

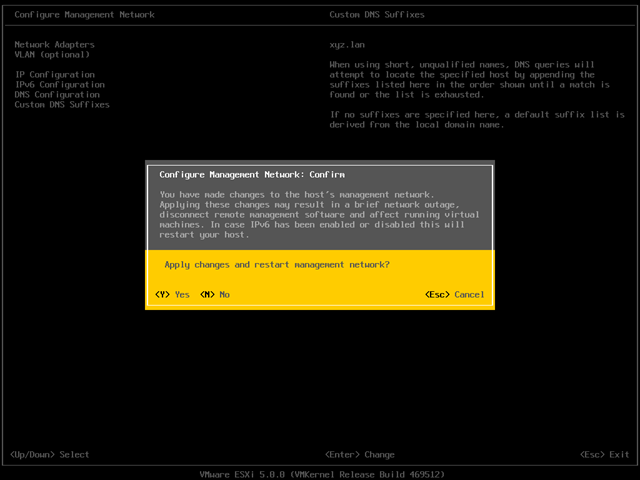

- Press ESC to exit Network Configuration and type Y to accept the changes.

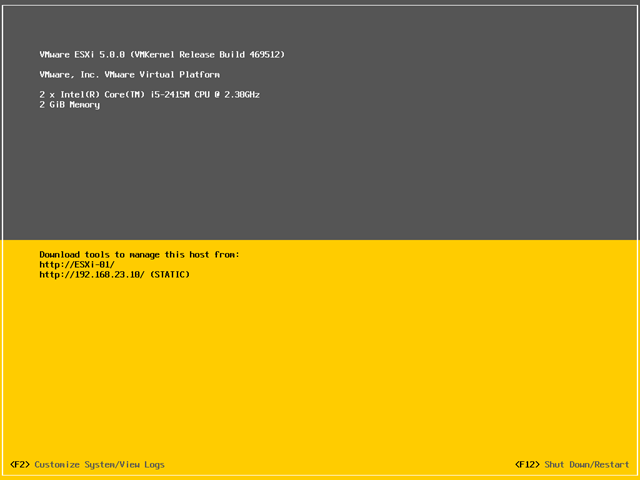

- Press ESC to come out from DCUI and you should be able to see New IP Address is displayed.
- Do the same for ESXi-02 with appropriate IP Address.
