Creating Virtual Lab Environment – Part 6

Step 14 – Installing vCenter Server

  1. Attach vCenter Installation ISO to vCenter VM.
    Screen Shot 2012-10-15 at 08.17.09

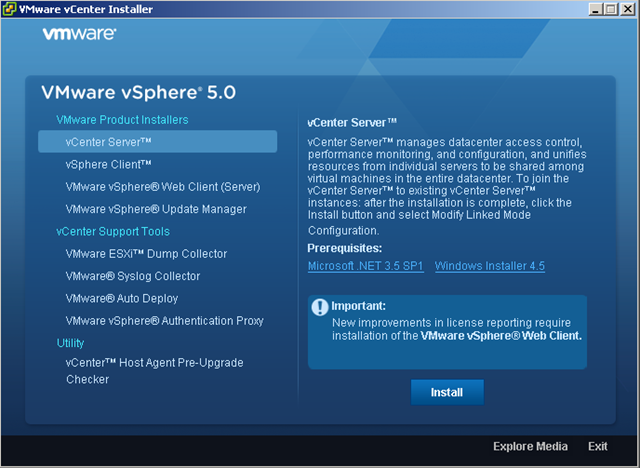

  2. Start vCenter Server Installation
    Screen Shot 2012-10-15 at 08.18.55
    Read more

Creating Virtual Lab Environment – Part 5

Step 13 –Configuring ESXi Server Network Settings

  1. Log in to ESXi Server DCUI by pressing F2.

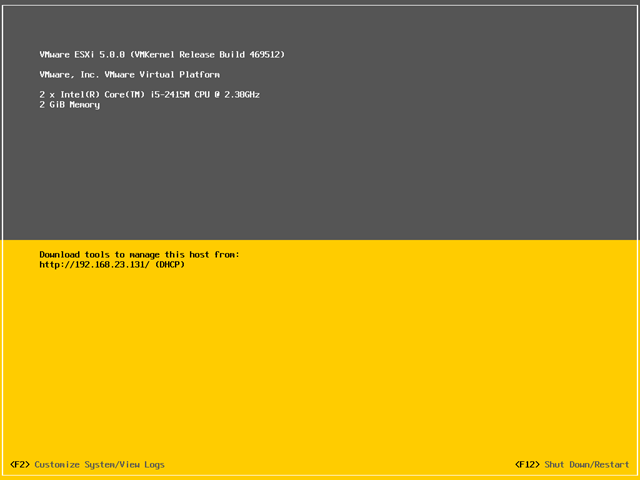

    VMware ESXi 5-01-2012-10-14-18-34-19

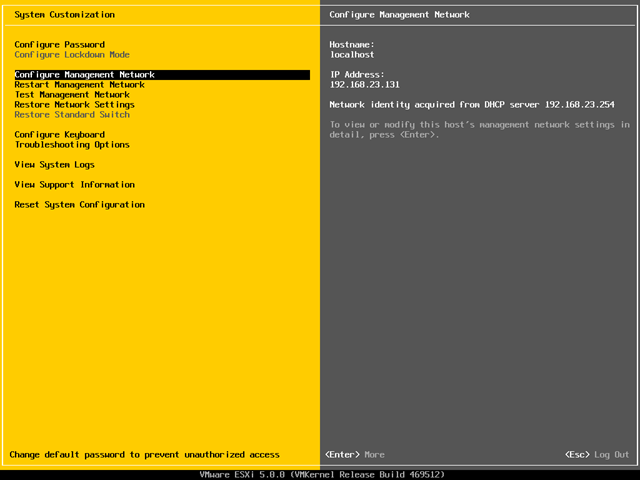

  2. Select “Configure Management Network” Option
    VMware ESXi 5-01-2012-10-14-18-34-53
    Read more

Creating Virtual Lab Environment – Part 4

Step 8 – Creating Openfiler VM

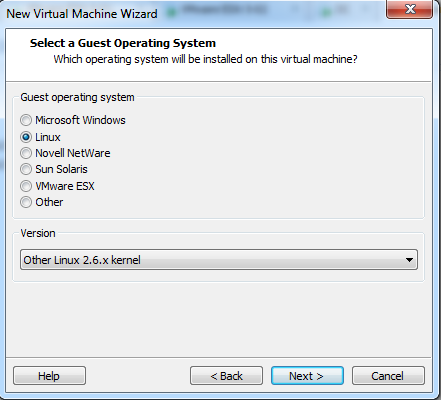

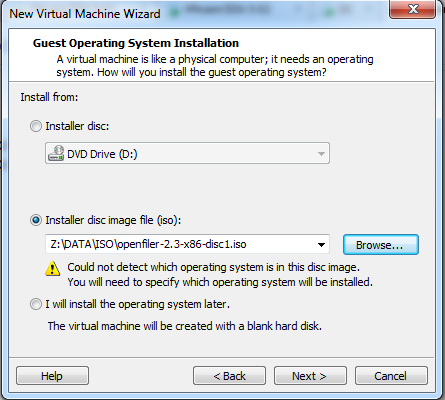

  1. Create a new VM for Openfiler. VMware Workstation does not automatically detect OS for Openfiler. Select Other Linux 2.6 kernel as I have x32 version of Openfiler. Select appropriate version according ISO image you have.
    Screen Shot 2012-10-07 at 15.35.40 Screen Shot 2012-10-07 at 15.36.03
    Read more

Creating Virtual Lab Environment – Part 3

Step 4 – Preparing DC

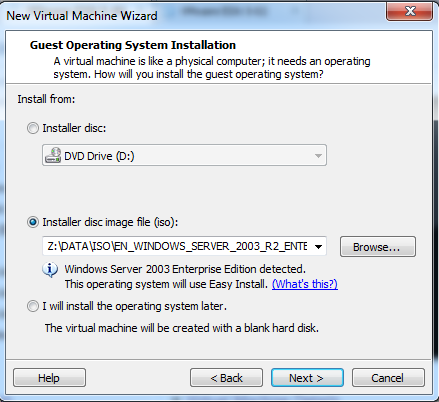

  1. Create a new Virtual Machine, Select Windows 2003 Server x32 ISO. You will be asked for Key and Administrator Name, then enter thenaccordingly.
    Screen Shot 2012-10-07 at 14.04.18
  2. Name Virtual Machine such as DC. Then Next.

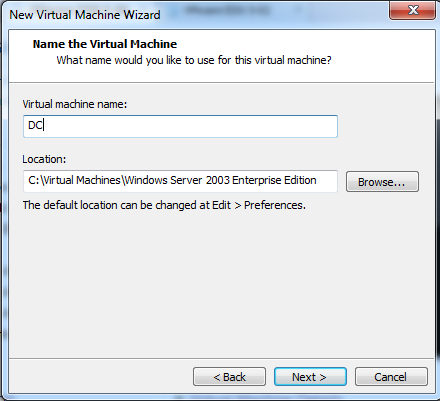

    Screen Shot 2012-10-07 at 14.04.56
    Read more

Creating Virtual Lab Environment – Part 2

Step 2 – Creating ESXi Server VMs.

  1. You will need minimum of two ESXi Servers. ESXi Server which runs in VM is called “Nested ESXi”.
  2. Create a New Virtual Machine with Custom Mode.
    Screen Shot 2012-10-07 at 13.04.24
    Read more

Creating Virtual Lab Environment – Part 1

I have been asked by my students how to setup the Lab Environment within VMware Workstation so many times. Although I have tried to explain as much as I can, I think it will be easier to understand if there is an instruction for how to setup. So finally I decided to write this instruction about it.

Tools you need

  1. Laptop/Desktop with minimum of 8GB RAM (10GB or more is preferable)
  2. VMware Workstation 9 ( Can be done with other editions but the instruction is based on 9)
  3. Windows 2003 x64 ISO
  4. Windows 2003 x32 ISO
  5. vCenter Server 5 Windows Edition ISO
  6. ESXi 5 ISO
  7. Openfiler ISO

My Environment

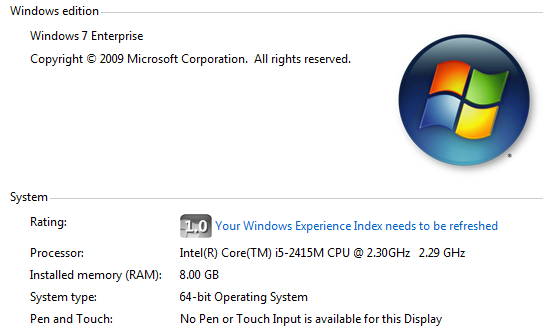

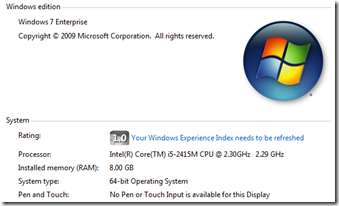

Screen Shot 2012-10-07 at 13.02.54

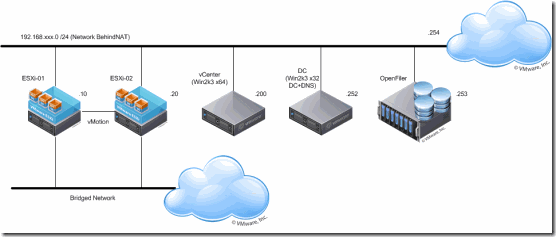

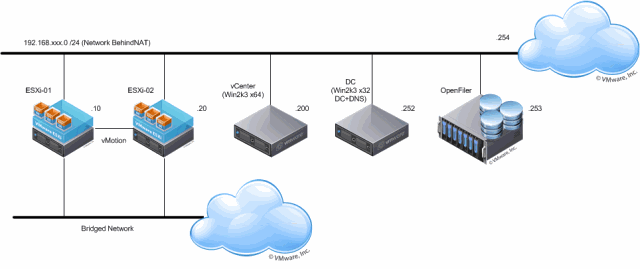

Network Diagram

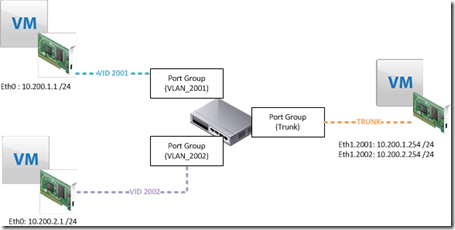

VMware Lab

Read more

VMware ESXi Total Lockdown

I assume that you already know what Lockdown Mode is. With Lockdown Mode enabled ESXi server, you will need to use vCenter to Administrator ESXi Server therefore you can enforce centrally managed permission control via vCenter Server, rather than configuring and managing permissions at each ESXi Server.

When Lockdown Mode is configured on ESXi server, vCenter Server has to be highly available as Loss of vCenter Server makes your ESXi Server unmanageable. Luckily you have a workaround. if your vCneter Server goes down, and need to access ESXi Server, then you can login to DCUI (Direct Console User Interface) of ESXi Server to disable Lockdown Mode.

Read more

GVT Guest VLAN Tagging using vNetwork Standard Switch

VMware supports VLAN tagging by Virtual Machines, this feature is called a guest VLAN tagging. GVT support depends on a Guest OS installed. Some OSs support VLAN tagging natively as long as NIC driver is available. Others require NIC driver for vNIC. VMXNET3 driver for Windows support VLAN tagging from Guest OS, so you can insert VLAN ID.

This is what I want to achieve here. I want to configure standard vNetwork Switch to have VLAN 2001 and 2002 and VMs in each VLANs to communicate each other.

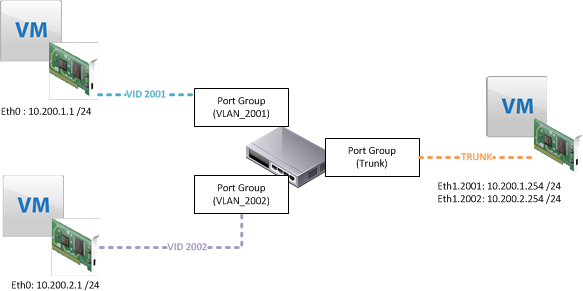

VMware network configuration

Read more

VCAP5-DCA Objective 1.1 – Implement and Manage Complex Storage Solutions – Knowledge

Objective 1.1 – Implement and Manage Complex Storage Solutions – Knowledge

Identify RAID Levels

Not sure how VMware will test me about RAID Levels in VCAP5-DCA Exam, but it is important to understand different types of RAID levels and their performance implication and disk failure supported. I’m sure if you are attempting for DCD exam, this will be one of the key factors of selecting right LUNs for the requirement.

Read more
